Database Migration Service (DMS) | Create Replication Subnet Group - AMS Advanced Change Type Reference

Database Migration Service (DMS) | Create Replication Subnet Group

Use to create a Database Migration Service (DMS) replication subnet group. Resource creation will fail if the dms-vpc-role IAM role doesn't already exist.

Full classification: Deployment | Advanced stack components | Database Migration Service (DMS) | Create replication subnet group

Change Type Details

Change type ID

ct-2q5azjd8p1ag5

Current version

1.0

Expected execution duration

60 minutes

AWS approval

Required

Customer approval

Not required

Execution mode

Automated

Additional Information

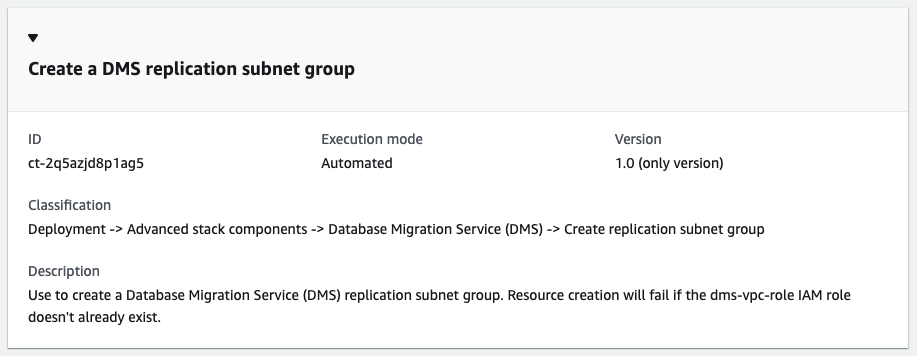

Create AWS DMS replication subnet group

Database Migration Service (DMS) replication subnet group creation interface with ID and execution details.
Note

This CT fails if the dms-vpc-role IAM role doesn't exist in the account.

How it works:

  1. Navigate to the Create RFC page: In the left navigation pane of the AMS console click RFCs to open the RFCs list page, and then click Create RFC.

  2. Choose a popular change type (CT) in the default Browse change types view, or select a CT in the Choose by category view.

    • Browse by change type: You can click on a popular CT in the Quick create area to immediately open the Run RFC page. Note that you cannot choose an older CT version with quick create.

      To sort CTs, use the All change types area in either the Card or Table view. In either view, select a CT and then click Create RFC to open the Run RFC page. If applicable, a Create with older version option appears next to the Create RFC button.

    • Choose by category: Select a category, subcategory, item, and operation and the CT details box opens with an option to Create with older version if applicable. Click Create RFC to open the Run RFC page.

  3. On the Run RFC page, open the CT name area to see the CT details box. A Subject is required (this is filled in for you if you choose your CT in the Browse change types view). Open the Additional configuration area to add information about the RFC.

    In the Execution configuration area, use available drop-down lists or enter values for the required parameters. To configure optional execution parameters, open the Additional configuration area.

  4. When finished, click Run. If there are no errors, the RFC successfully created page displays with the submitted RFC details, and the initial Run output.

  5. Open the Run parameters area to see the configurations you submitted. Refresh the page to update the RFC execution status. Optionally, cancel the RFC or create a copy of it with the options at the top of the page.

Note

This CT fails if the dms-vpc-role IAM role doesn't exist in the account.

How it works:

  1. Use either the Inline Create (you issue a create-rfc command with all RFC and execution parameters included), or Template Create (you create two JSON files, one for the RFC parameters and one for the execution parameters) and issue the create-rfc command with the two files as input. Both methods are described here.

  2. Submit the RFC: aws amscm submit-rfc --rfc-id ID command with the returned RFC ID.

    Monitor the RFC: aws amscm get-rfc --rfc-id ID command.

To check the change type version, use this command:

aws amscm list-change-type-version-summaries --filter Attribute=ChangeTypeId,Value=CT_ID
Note

You can use any CreateRfc parameters with any RFC whether or not they are part of the schema for the change type. For example, to get notifications when the RFC status changes, add this line, --notification "{\"Email\": {\"EmailRecipients\" : [\"email@example.com\"]}}" to the RFC parameters part of the request (not the execution parameters). For a list of all CreateRfc parameters, see the AMS Change Management API Reference.

INLINE CREATE:

Issue the create RFC command with execution parameters provided inline (escape quotes when providing execution parameters inline) and then submit the returned RFC ID. For example, you can replace the contents with something like this:

aws --profile saml --region us-east-1 amscm create-rfc --change-type-id "ct-2q5azjd8p1ag5" --change-type-version "1.0" --title "TestDMSRepSG" --execution-parameters "{\"Description\":\"DMSTestRepSG\",\"VpcId\":\"VPC-ID\",\"Name\":\"Test Stack\",\"Parameters\":{\"Description\":\"DESCRIPTION\",\"SubnetIds\":[\"SUBNET-ID\", \"SUBNET-ID\"]},\"TimeoutInMinutes\":60,\"StackTemplateId\":\"stm-j637f96ls1h4oy5fj\"}"

TEMPLATE CREATE:

  1. Output the execution parameters for this change type to a JSON file; this example names it CreateDmsRsgParams.json:

    aws amscm get-change-type-version --change-type-id "ct-2q5azjd8p1ag5" --query "ChangeTypeVersion.ExecutionInputSchema" --output text > CreateDmsRsgParams.json
  2. Modify and save the execution parameters CreateDmsRsgParams.json file. For example, you can replace the contents with something like this:

    { "Description": "DMSTestRepSG", "VpcId": "VPC_ID", "TimeoutInMinutes": 60, "StackTemplateId": "stm-j637f96ls1h4oy5fj", "Name": "Test RSG", "Parameters": { "Description": "DESCRIPTION", "SubnetIds": ["SUBNET_ID", "SUBNET_ID"] } }
  3. Output the JSON template to a file in your current folder; this example names it CreateDmsRsgRfc.json:

    aws amscm create-rfc --generate-cli-skeleton > CreateDmsRsgRfc.json
  4. Modify and save the CreateDmsRsgRfc.json file. For example, you can replace the contents with something like this:

    { "ChangeTypeVersion": "1.0", "ChangeTypeId": "ct-2q5azjd8p1ag5", "Title": "DMS-RSG-Create-RFC" }
  5. Create the RFC, specifying the execution parameters file and the CreateDmsRsgRfc file:

    aws amscm create-rfc --cli-input-json file://CreateDmsRsgRfc.json --execution-parameters file://CreateDmsRsgParams.json

    You receive the ID of the new RFC in the response and can use it to submit and monitor the RFC. Until you submit it, the RFC remains in the editing state and does not start.

  • This CT fails if the dms-vpc-role IAM role doesn't exist in the account.

  • You can add up to 50 tags, but to do so you must enable the Additional configuration view.

    For more information about DMS replication instances and subnet groups, see Setting Up a Network for a Replication Instance.

Execution Input Parameters

For detailed information about the execution input parameters, see Schema for Change Type ct-2q5azjd8p1ag5.

Example: Required Parameters

{ "Description": "This is a test description", "VpcId": "vpc-1234567890abcdef0", "Name": "Test Stack", "Parameters": { "Description": "test description", "SubnetIds": ["subnet-1234567890abcdef0"] }, "TimeoutInMinutes": 60, "StackTemplateId": "stm-j637f96ls1h4oy5fj" }

Example: All Parameters

{ "Description": "This is a test description", "VpcId": "vpc-12345678", "Name": "Test Stack", "Tags": [ { "Key": "key1", "Value": "value1" }, { "Key": "key2", "Value": "value2" } ], "Parameters": { "Identifier": "myidentifier", "Description": "test description", "SubnetIds": ["subnet-12345678"] }, "TimeoutInMinutes": 60, "StackTemplateId": "stm-j637f96ls1h4oy5fj" }
